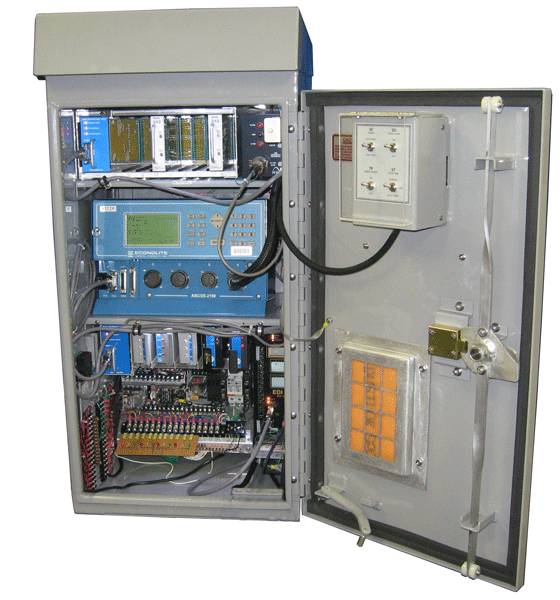

Cabinets - Pedestal (NEMA TS1, TS2-1, TS2-2)



Features include:

• Meets all NEMA TS2 Cabinet Specifications.

• Enhancesmulti-vendor sourcing and standardization.

• Facilitates interchangeability without precluding downward compatibility with TS1 equiptment.

• Minimizes malfuction potential and increases traffic safety through redundant MMU functionality.

• Provides for future expandability.

• Enhanced user interface.

• TS2 Type 1 simplifies cabinet wiring with SDLC serial bus.

• Load Bays available in 8, 12. and 16 load switch positions in both NEMA TS1 and TS2 configurations.

• All load bay wiring is colour coded.

• Detector Card Racks available in 4 and 8 slots plus BIU Slot.

• NEMA standard heavy duty flash transfer relays.

• Seperate ground, neutral, logic ground, and signal buss on Power Distribution Assembly (PDA).

• Malfunction Management Unit (MMU).

• Bus Interface Unit (BIU).

• Marine alloy alluminum 5052 with polyester powdercoat finish.

• Available in almost any colour.

• Vandal-proof door with 3-point zinc-plated locking mechanism, 6" handle, padlock provision and piano-style      continuous hinge.

• Treated neoprene closed-cell gasket around doors.

• Sloped roof with overhang over main door.

• Weatherproof clear pouch for manuals on inside door panel.

• Internal ventilation with non-corrosive screening and aluminum winter cover.

• Police panel accepts following switches: Signals on / off, Auto / Flash, Manual Control (optional).

• Convenience Receptable (optional).

• Flexible 14" snake light (optional).

• Fan / Heater on thermostat (optional).

• Power: 89 - 135VAC, 60Hz.
